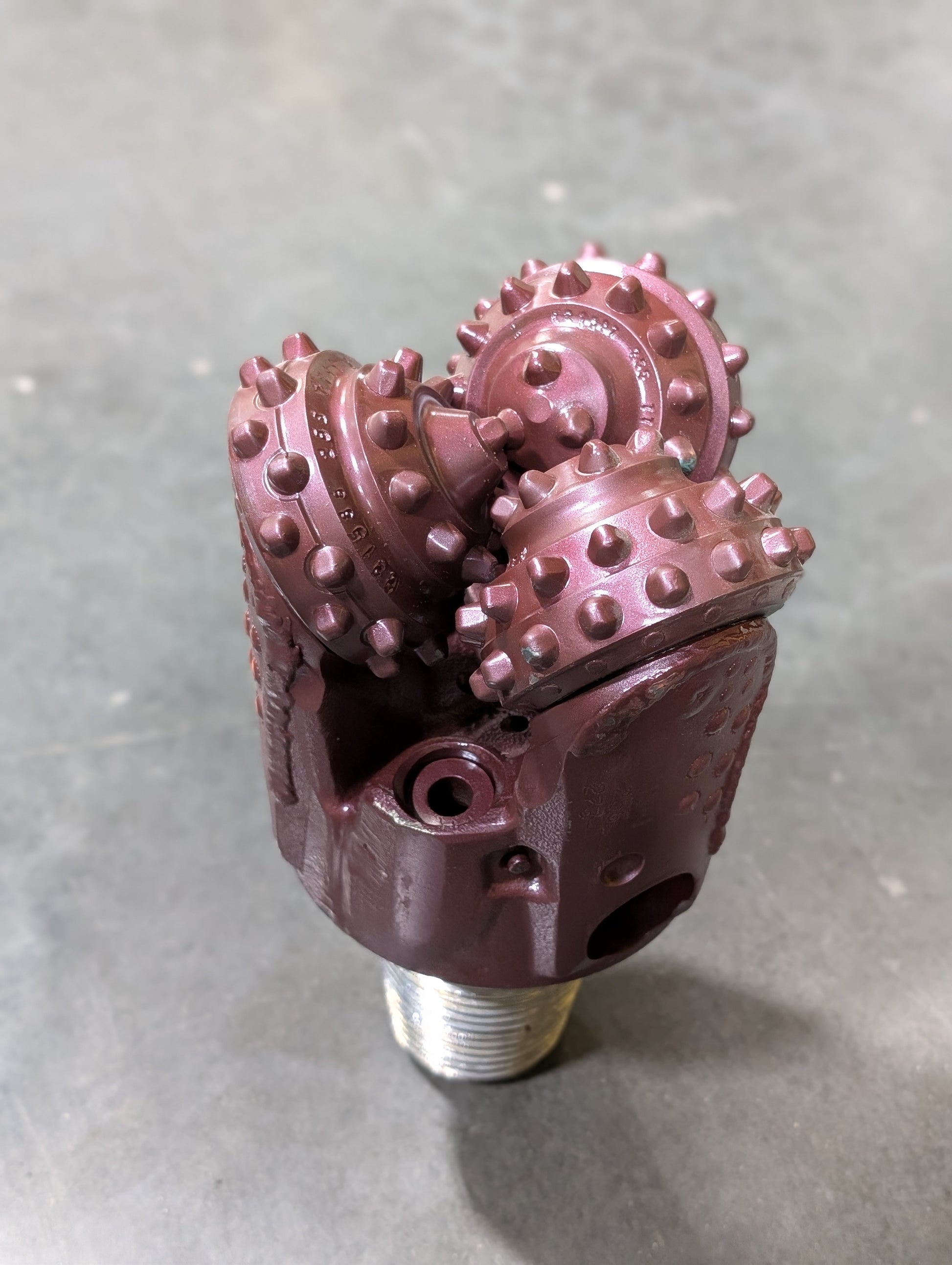

NEW/SURPLUS 6 1/2" IADC 545X TCI ( Tungsten Carbide Insert) Sealed Bearing Tricone Drilling Bit w/ 3 1/2" REG PIN

The 6 1/2" IADC 545X Tungsten Carbide Insert (TCI) Tricone Bit is engineered for high-performance drilling in extremely hard and abrasive formations. Equipped with premium Tungsten Carbide Inserts (TCI) and a robust sealed bearing design, this bit ensures longevity and consistent efficiency, even in the most challenging drilling conditions. The 545X TCI bit is specifically designed for use in hard rock formations such as quartzite, chert, compacted sandstones, and various igneous and metamorphic rocks.

Key Features:

• Bit Size: 6 1/2 inches
• IADC Code: 545X (Extremely Hard Formation, Sealed Bearing)
• Bit Type: Tungsten Carbide Insert (TCI)
• Formation Suitability: Ideal for extremely hard, compact, and abrasive formations, including quartzite, chert, and hard limestone
• Bearing Type: Sealed roller bearings designed to handle harsh, abrasive environments, providing extended bearing life and bit longevity
• Gauge Protection: Enhanced gauge protection for maximum durability and extended service life, especially in abrasive conditions
• Flushing System: Equipped with precisely engineered jet nozzles to ensure optimal cuttings removal and cooling, reducing bit wear
• Performance: Optimized for higher weight on bit and moderate rotary speeds, making it ideal for maintaining penetration rates in tough formations

Applications:

The 6 1/2" IADC 545X TCI Tricone Bit is an excellent choice for drilling operations where hard and abrasive rock formations pose significant challenges. Its robust design reduces downtime, maximizes bit life, and increases drilling efficiency in extreme environments, making it the go-to option for demanding drilling projects.
